Name: 12701610nm WDM Module CWDM Components Optical Fiber High Insolation
Brand: GaPho
Price: 1 USD

Brand Name : GaPho

Model Number : WDM Module

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Channel Wavelength (nm) : 1270~1610 or 1271~1611

Channel Spacing（nm） : 20

Pass Channel Insertion Loss (dB) : ≤0.6

Maximum Power Handling (mW) : 300

Opterating Temperature (℃) : -20~+75

Contact Now

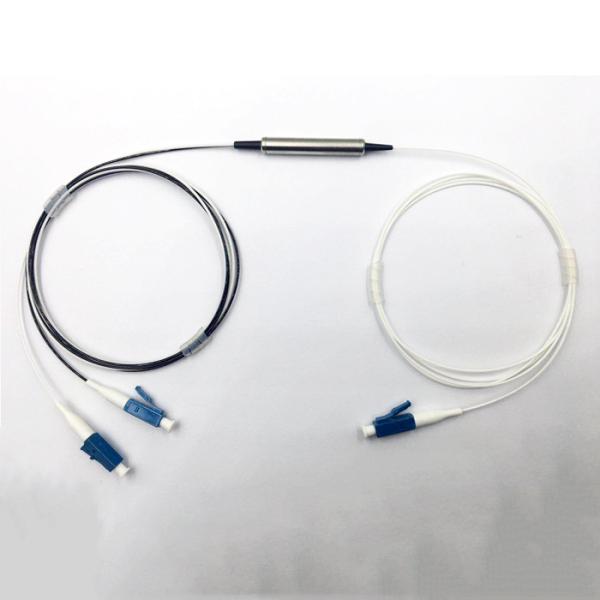

WDM Module CWDM Components Optical Fiber

◇Features:
 Low Insertion Loss
 High Channel Isolation
 High Stability, High Reliability
 Epoxy-free on Optical Path

◇ Application:
 Line monitoring
 WDM network
 Telecommunication
 Fiber optical amplifier

◇ Specifications

Parameter		Specification
Channel Wavelength (nm)		1270~1610 or 1271~1611
Channel Spacing(nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Pass Channel Insertion Loss (dB)		≤0.6
Reflection Channel Insertion Loss (dB)		≤0.4
Channel Ripple (dB)		<0.3
Isolation (dB)	Adjacent	≥30
	Non-adjacent	≥40
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion(ps)		<0.1
Directivity (dB)		＞50
Return Loss(dB)		＞45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-20~+75
Storage Temperature (℃)		-40~+85
Package dimension (mm)		Φ5.5xL38 or Specify

1270-1610nm WDM Module CWDM Components Optical Fiber High Insolation

◇ Ordering Information

WDM	Wavelength	Isolation	Fiber Type	Fiber Length	Connector	Package
WDM 3-Port Device	I K 1550Pass & 1310Reflect	1 =Standard 2=High	1 =250um SM 2=900um SM	1=0.5m 2=lm 3-2m X=Specify	I=None 2=FC/UPC 3=FC/APC 4=LC/UPC 5=LC/APC 6=SC/UPC 7=SC/APC x=Specify	l=Ø 5.5x34mm 2=Ø 5.5x38mm X=Specify
